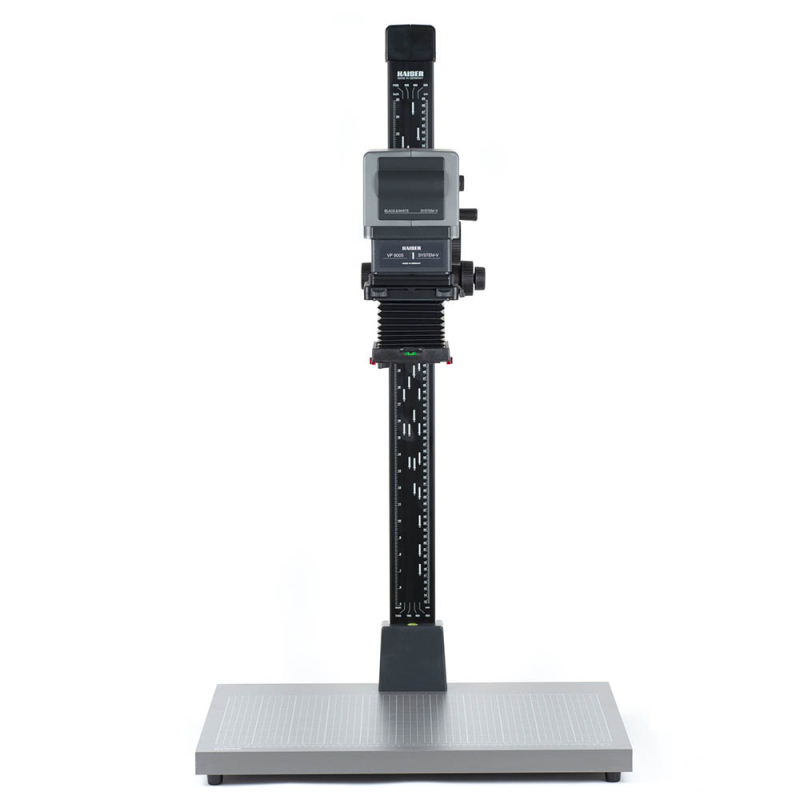

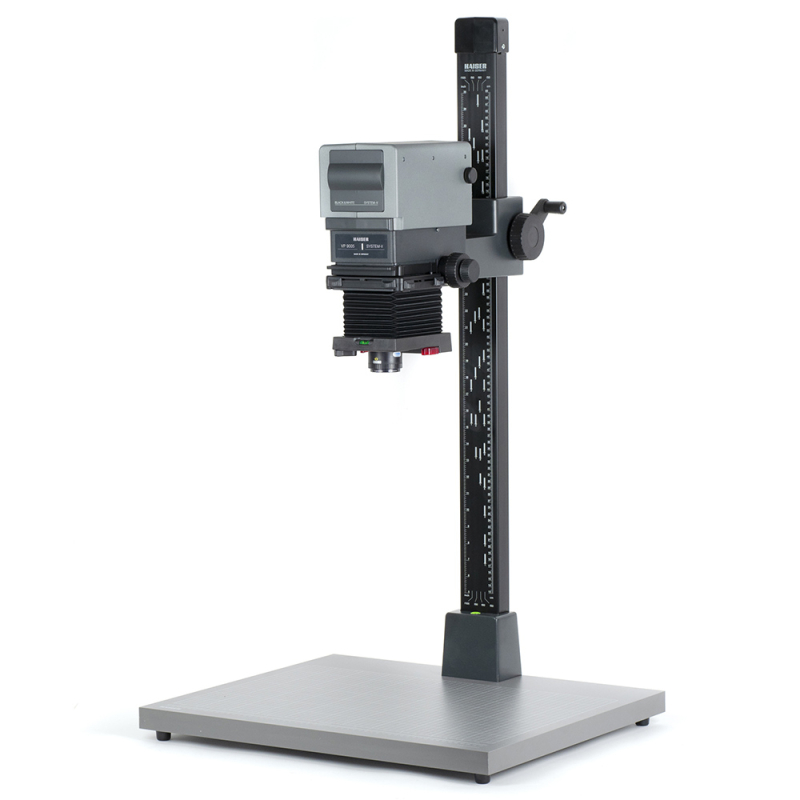

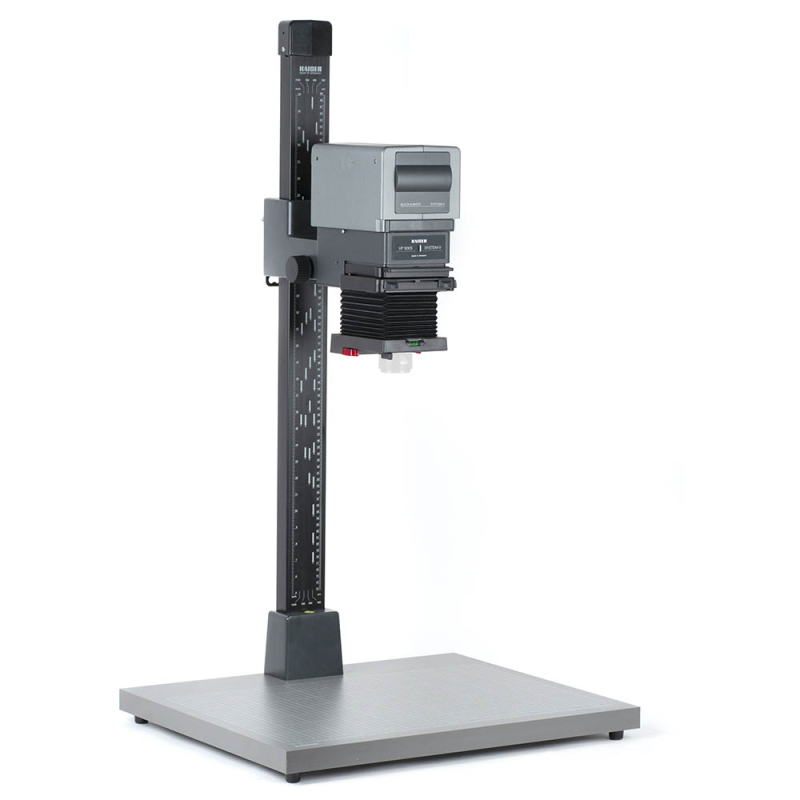

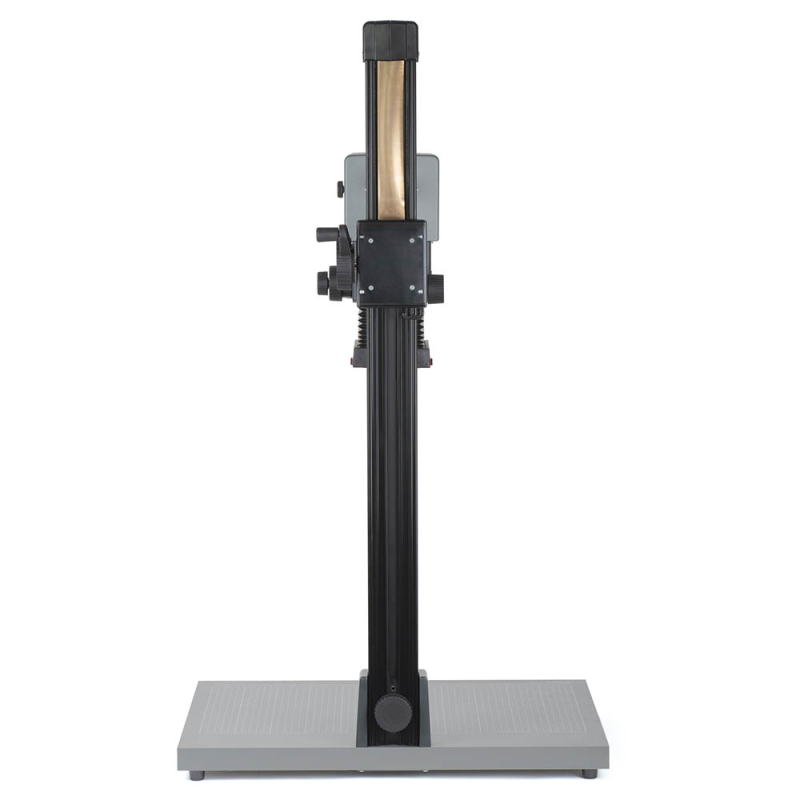

Kaiser VP 9005 SYSTEM-V B & W Enlarger

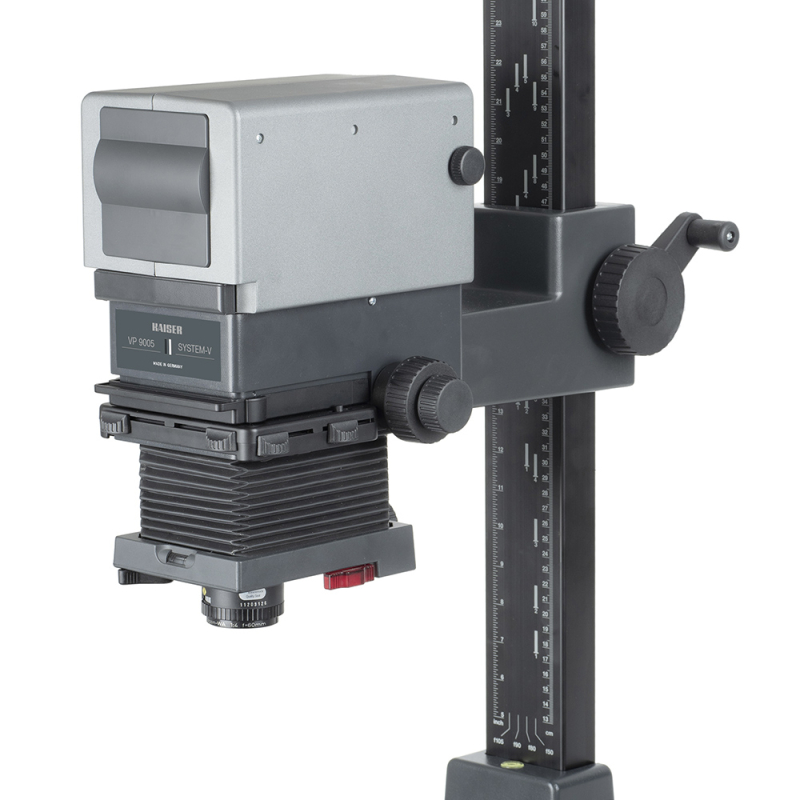

Lighting head with 75 watt opal lamp, lamp adjustable. Filter drawer for inserting 8.5 x 8.5 cm filters (e.g. Multigrade^® filters); with diffusion screen for homogeneous light distribution.

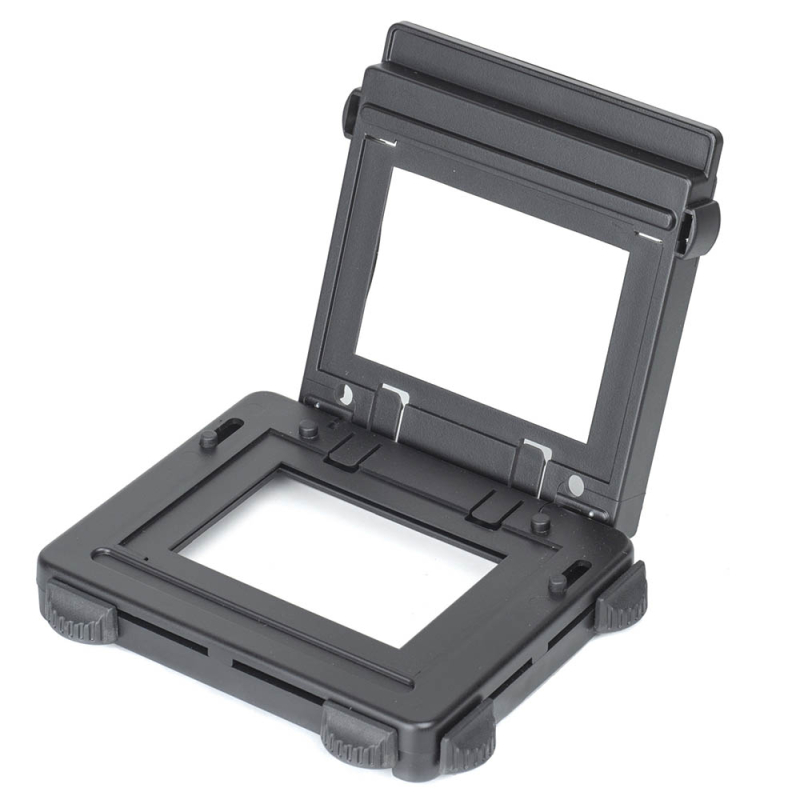

Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and registering pins. Incl. pair of inserts Anti-Newton glass / flat glass and format mask 6 x 7 cm. More format masks and glass inserts are available as optional accessories.

Double condenser for formats up to 6 x 9 cm.

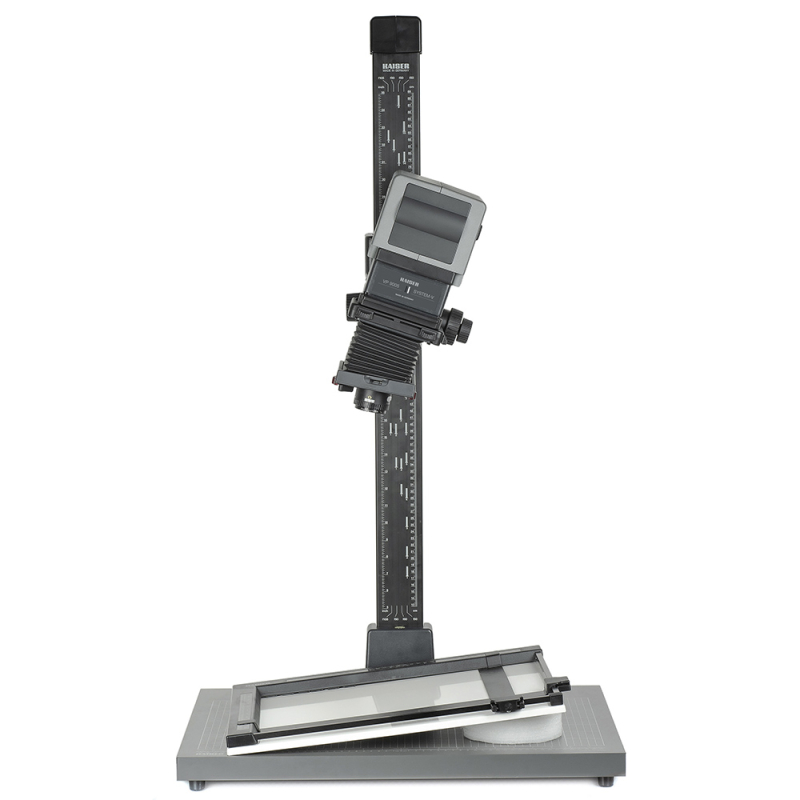

Lens panel with spirit level and slidable red filter, tiltable for distortion correction on Scheimpflug principle. Quick change attachment for easy lens mounting with lens holder ring.

Height adjustment by hand-crank operated friction drive on plastic bearings. Weight compensation by roll-off spring mechanism.

Focus adjustment with additional fine drive for very precise focusing.

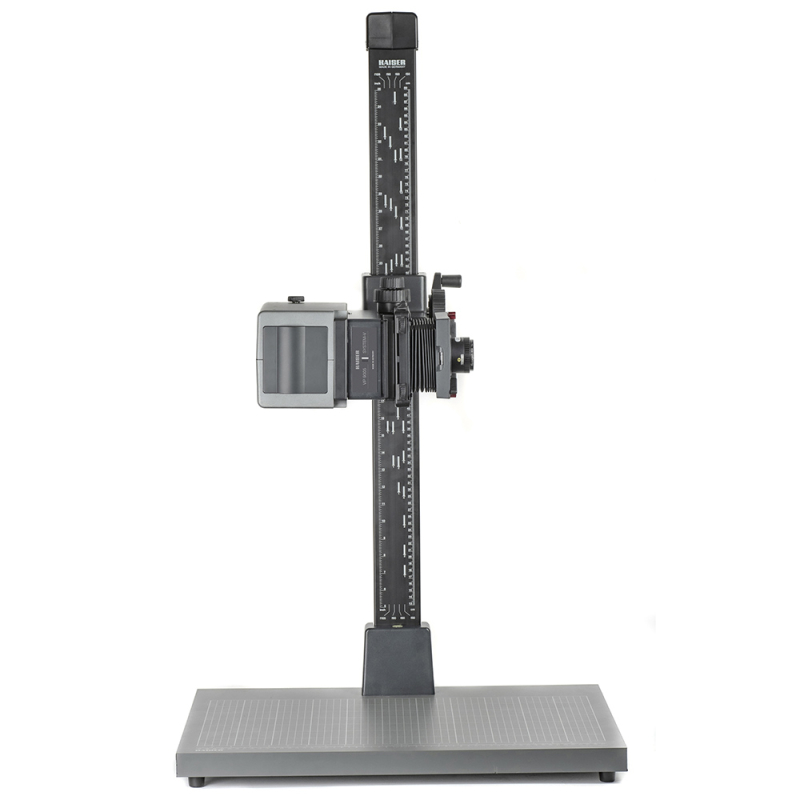

Wall projection. For this purpose, the enlarger head can be swiveled by 90° at the supporting arm.

Floor projection. For this purpose, the column can be mounted in the column base turned by 180°.

Wide, vibration-resistant column of dull black anodized aluminum tubing, with cm and inch scales and markings for magnification factors.

Non-reflecting, matt gray laminated baseboard with printed fine grid and cm and inch scale and cast aluminum base for the column. Individually height-adjustable feet. Spirit level in the column base.

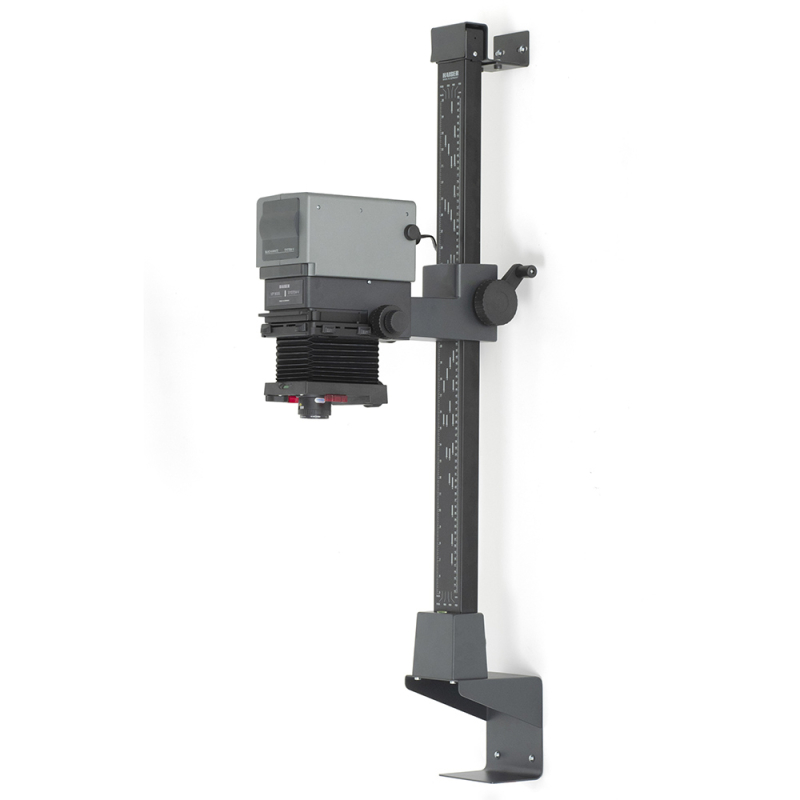

Compatible with other SYSTEM-V components (e.g. wall mount, longer column, bigger baseboard).

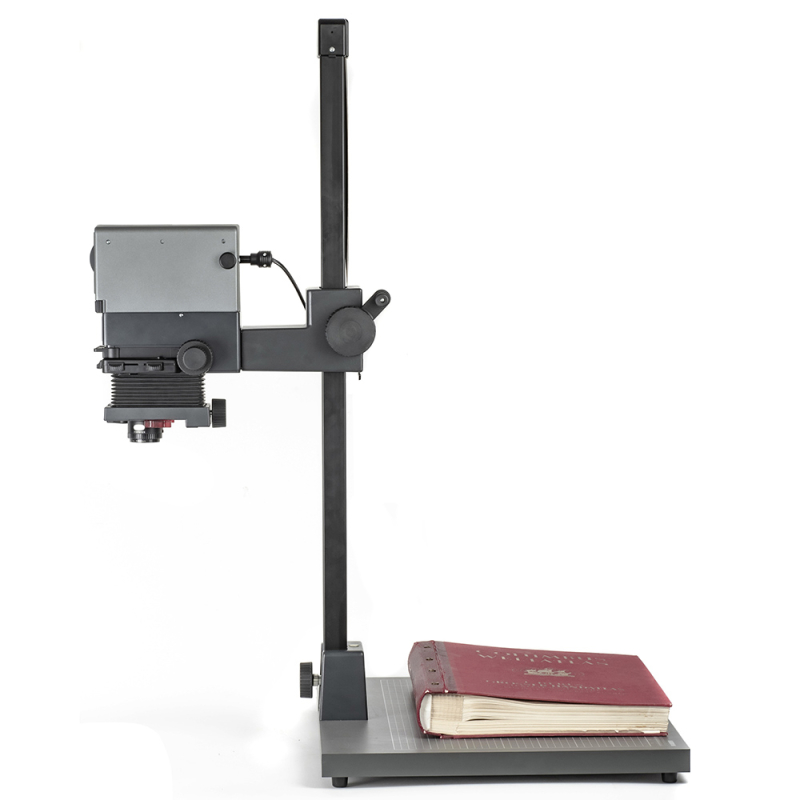

Can be converted into a copy stand in just a few simple steps. To do this, the enlarger head is replaced with a camera arm from the R1 Copy System. If required, a lighting unit from the R1 Copy System can be attached to the baseboard.

Specifications:

Column (HxWxD): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)
Baseboard (WxHxD): approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
Lamp: opal lamp 75 W, E27
Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)
Distance between optical axis and column base: approx. 220 mm (8.7 in.)
Cord: approx. 2.50 m (8.2 ft.)

Scope of supply:
Enlarger with compound negative carrier
Anti-Newton glass / flat glass (4433)
Format mask 6 x 7 cm
Opal lamp (4356)
Diffusion screen for filter drawer
Two lens holder rings. Without lens.
