Kaiser Lighting Unit for Wolfenbüttel Book Reflector 45N

5781

Lighting unit for digitizing historical books


LED light designed for Kaiser's Wolfenbüttel 45N book reflector, which gives even and soft light to the object to be copied. The power of the lamp can be adjusted in 1% increments from 10% to 100%. It has a memory function, as well as integrated heat management, which guarantees that the brightness and color temperature of the light remain the same.

More details

Delivery time 4-6 weeks

1 745,02 €


Ask about product
Kaiser Lighting Unit for Wolfenbüttel Book Reflector 45N

Kaiser Lighting Unit for Wolfenbüttel Book Reflector 45N



Data sheet

Category Copy and Repro Stands
Merkki Kaiser
Model Lighting Unit for Wolfenbüttel Book Reflector 45N
Tuotekoodi 5781

More info

LED daylight lighting unit for use with the Wolfenbüttel Book Reflector 45N (5780). For even and soft illumination of the page to be reproduced. With thermo-management.

272 selected white SMD LEDs, 5600 Kelvin, CRI: 96. Emitted light has absolutely no IR and UV content, is flicker free without residual ripple. Light can be dimmed in 1 %-steps from 10 % up to 100 %. Illuminated info screen.

The integrated thermo-management ensures that the adjusted brightness as well as the color temperature always remain constant, regardless of the room and unit temperature and thus absolutely reproducible results can be achieved. Without thermo-management, both brightness and color temperature would change slightly as the temperature changes. For example, when the LEDs heat up during operation (because light-emitting diodes convert a part of the input energy into heat, just like other light sources) or because the ambient temperature is normally not always constant. This thermo-management includes both sensor-controlled temperature monitoring with dynamic compensation control and elaborate passive cooling via LED board and aluminum housing.

Memory function: The lighting unit starts with the brightness that was set before the last switch-off.

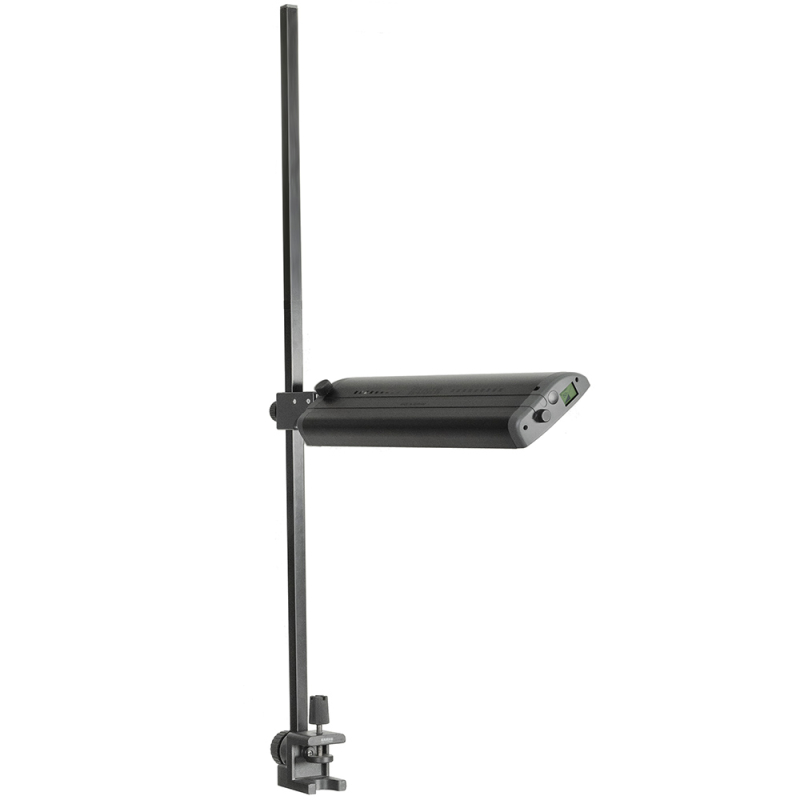

Lamp housing made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screen. Vertical arm tiltable with detent joint. Mounted with strong cast aluminum clamp base, clamp width up to 55 mm (2.2 in.). Comes with mains adapter.



Light
LED array: 272 SMD LEDs
Color temperature: 5600 K
Color rendition index: CRI: 96
LED angle of radiation: 100°
Power consumption: ≤ 40 W
Operating voltage: 24 V
Light emitting area: 58 x 16.5 cm (22.8 x 6.5 in.)
Vertical arm: 142 cm (55.9 in.) length / 25 x 25 mm (1.0 x 1.0 in.) edge dimension

Mains adapter
Input: 100-240 V, 50/60 Hz
Output: 24 V, 4 A
Mains lead: approx. 2.50 m (8.2 ft.)
