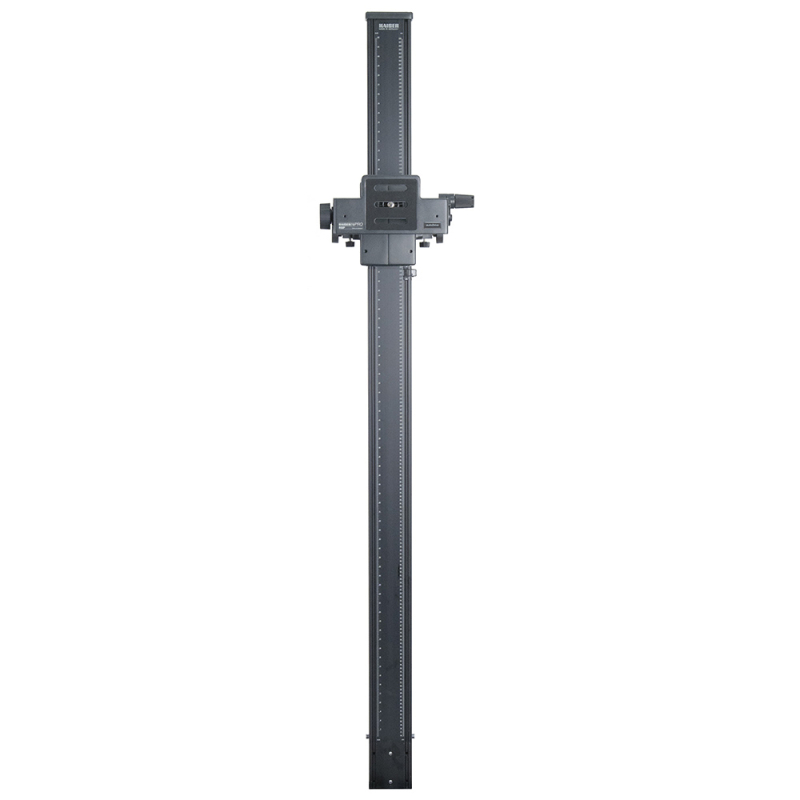

Kaiser RSP Xtra autoDrive Column

5725

Camera column for professional digitization

A sturdy rePRO series column with motorized height adjustment for professional digitization. The camera holder can be precisely controlled with the included Kaiser autoDrive program or a wired remote control. Adjustment speed does not change with different loads. Height positions can be saved and retrieved with a repeatability of approx. 1/100mm.

More details

Delivery time 4-6 weeks.

6 366,53 €


Ask about product
Kaiser RSP Xtra autoDrive Column

Kaiser RSP Xtra autoDrive Column



Data sheet

Category Copy and Repro Stands
Merkki Kaiser
Model RSP Xtra autoDrive Column
Tuotekoodi 5725

More info

Column made of multi-chamber special aluminum section, matt black anodized, with printed cm and inch scales. Mounting with rePRO Wall Mount (5614) on load-bearing walls or in rePRO Base (5610) on suitable substructure.

Camera carrier made of cast aluminum, with motorized height adjustment via "Kaiser autoDrive" control program or cable remote control. Adjustment speed independent of load. Any height position is exactly held via self-limiting worm-gear. Automatic limit stop by magnetic sensor. Camera carrier horizontally adjustable via specially shaped parallel guides with gear rack, hand cranks for right-hand/left-hand operation, two locking screws. Built-in spirit level. Camera mounting plate can be swiveled by ± 90° with high-precision fine adjustment.

Cable remote control for slow and fast travel speed up and down. Four height positions can be stored and recalled accurately with one keystroke. Red emergency stop key.

“Kaiser autoDrive" control program for computer-controlled height adjustment via PC/laptop and for brightness control of the RB 570 AX LED lighting unit (5652). Height positions can either accessed directly or by retrieving one of 500 possible saved “projects” including height position and brightness values.



“Kaiser autoDrive“ control program details:



Direct access height adjustment of the camera carrier via scroll bar with different speed rate.

Pre-selected height adjustment of the camera carrier plus preset brightness level by selecting predefined project. (A project comprises the target position of the camera carrier, a description of the project and, if needed, the brightness settings of the lights.)

The brightness level of each light of the RB 570 AX LED lighting unit (5652) can be directly set via the +/- buttons or by input of a value.

Extensively intuitive user interface, clearly laid out menus. Tool tips pop up when the cursor touches particular buttons or areas (can be switched off).

Clearly laid out project list. Projects can be saved, retrieved, newly created, copied, edited and deleted. Max. 500 projects. List can be sorted by all columns in ascending or descending order, column width can be changed.

Multiple input fields for project description (e.g. camera, lens, focal length, template size), for reproducible results.

Event log to display drive status, etc.

Actual position indicator (colored frame around the slider). Yellow: reference travel required, green: current height position and target position of the current project identical, red: current height position does not correspond to the target position. Can be switched off.

Position adjustment in millimeters, inches or pulses.

Language selectable (German or English).

Emergency stop via program, space bar on the computer keyboard or cable remote control.

System requirements:
Win 2000, Win XP, Win 7, Win 8.1, Win 10, Win 11.



Specifications:


Column height: 216 cm (85 in.)
Cross-section: 12 x 8 cm (4.7 x 3.1 in.)
Height adjustment: motorized (computerized or via cable remote control)
Camera mounting plate: 13 x 13 cm (5.1 x 5.1 in.)
Maximum load: approx. 15 kg (33 lbs.)
Mounting thread: 1/4” / 3/8”, exchangeable
Scope of delivery: Column with camera carrier, control unit, cable remote control, various connection cables, mounting accessories, control program (on USB stick).
