Kaiser Book Holder 69/50 AR

5774

Holder for digitizing books

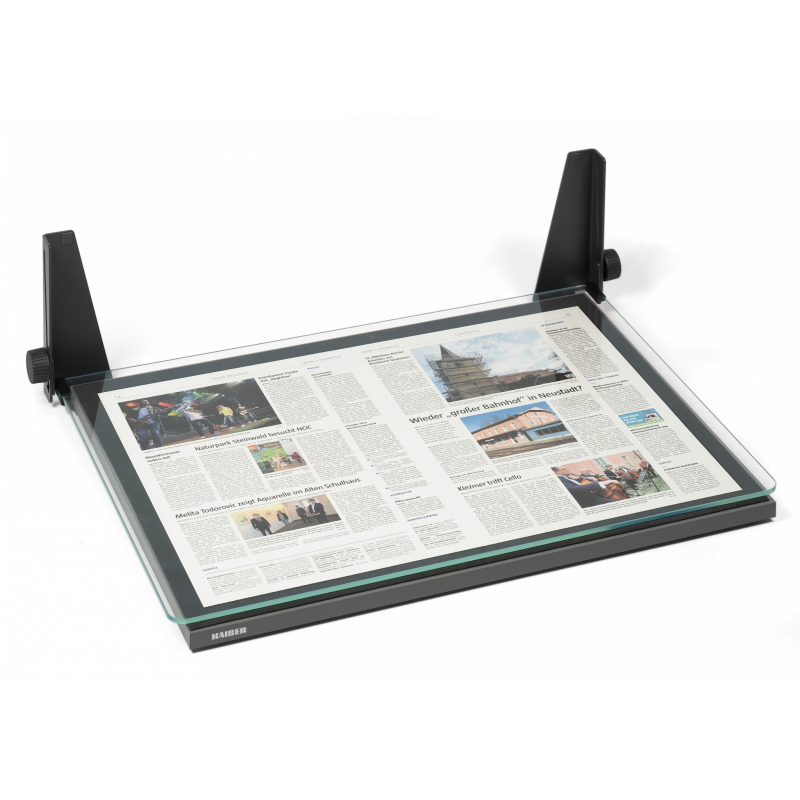

Book holder with a glass surface for professional repro photography, e.g. for books and magazines. A sturdy base plate with a non-slip coating on top and non-slip feet underneath. 6 mm thick glass pressure plate with tilt and height adjustment. For a book with a maximum size of 69 x 50 cm and a thickness of 14.5 cm.

More details

Delivery time 4-6 weeks

1 035,06 €


Ask about product
Kaiser Book Holder 69/50 AR

Kaiser Book Holder 69/50 AR



Data sheet

Category Copy and Repro Stands
Merkki Kaiser
Model Book Holder 69/50
Tuotekoodi 5774

More info

Holding device with glass pressure plate for the exact positioning when doing copy work from books, magazines and newspapers.
In the photo lab the book holder is also suitable for making contact prints from negatives on photographic paper and for alternative photographic processes using contact printing.

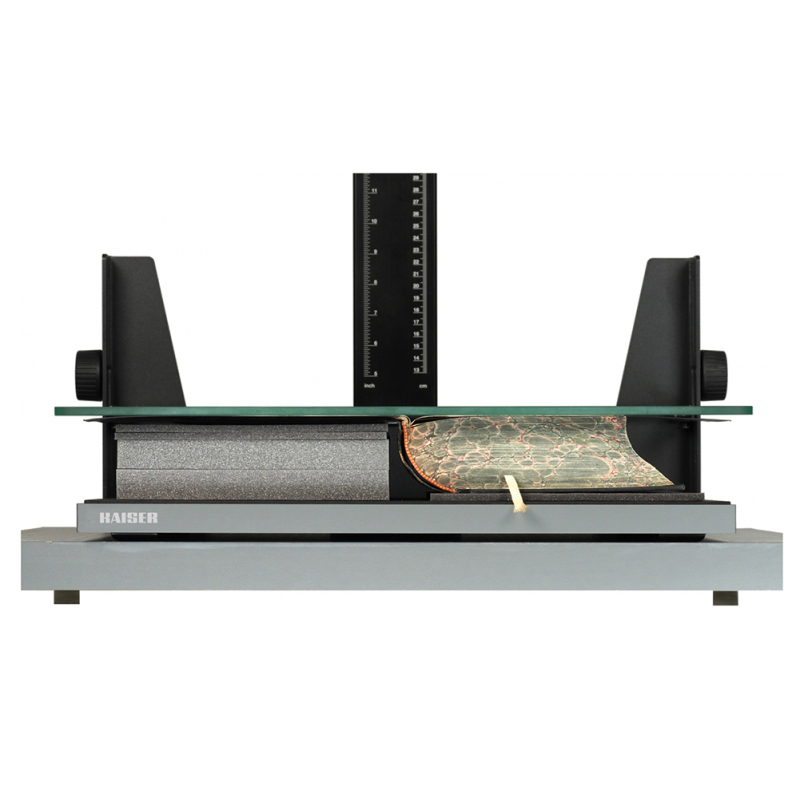

Solid base plate with non-slip coating on top and non-slip feet underneath. 6 mm (0.2 in.) thick glass pressure plate, foldable and variable in height. To work more ergonomically, more efficiently and original-friendly at a particular height, you can lock the glass pressure plate into a position between 0 and 145 mm (5.7 in.).

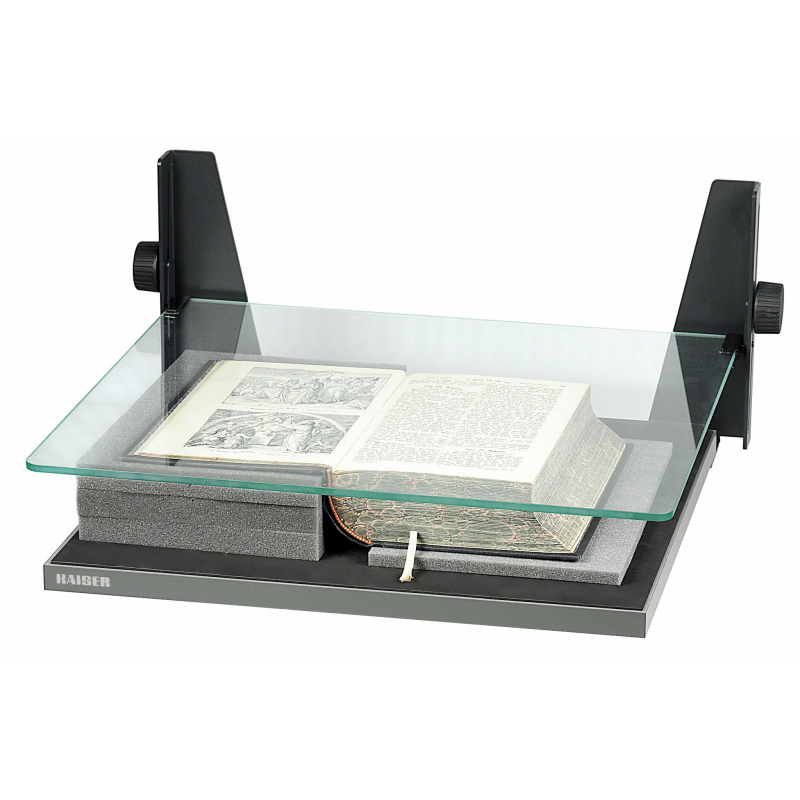

Several 28 x 18 cm (11 x 7.1 in.) preformed foam elements of various thickness are used to compensate for the height of an open book.

Black cardboard sheets can be placed under the page you want to copy so that the print on the back side or subjacent side cannot shine through the paper.

With extra white glass pressure plate with anti-reflective coating on both sides. The optical interference coating ensures high color neutrality and minimum residual reflection (< 0.5 %).

For formats up to:  69 x 50 cm.

Maximum height of original (book etc.): 145 mm

Dimensions (WxHxD): 76.9 x 22.6 x 55.4 cm.

Comes with: 16 preformed foam elements (4 x 20 mm, 4 x 10 mm, 8 x 5 mm thick) and 4 black cardboard sheets: 2 x A4 (29.7 x 21 cm) and 2 x A3 (42 x 29.7 cm).
